LED Linear Light CVNS00022

Model: CVNS00022
Wattage: 6W-60W
LED Chip: CREE/Citizen
Driver Brand: OSRAM/BOKE/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/30°/45°
Diameter: 105*60mm-434*122mm
Cutout: 98*50mm-420*100mm

Inquiry

Details

Product Pictures:

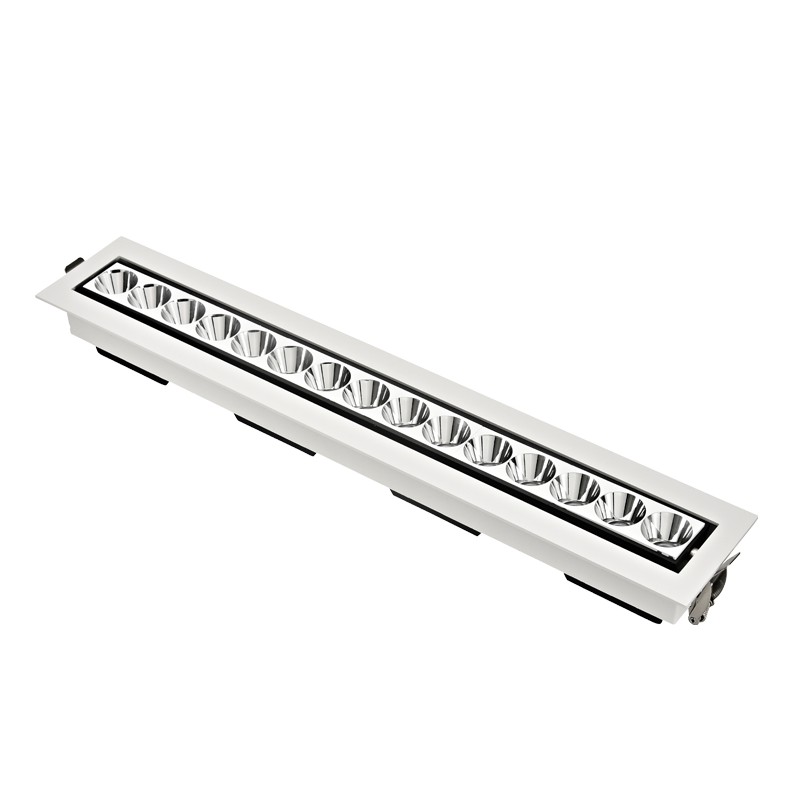

LED Linear Light CVNS00022(图1)

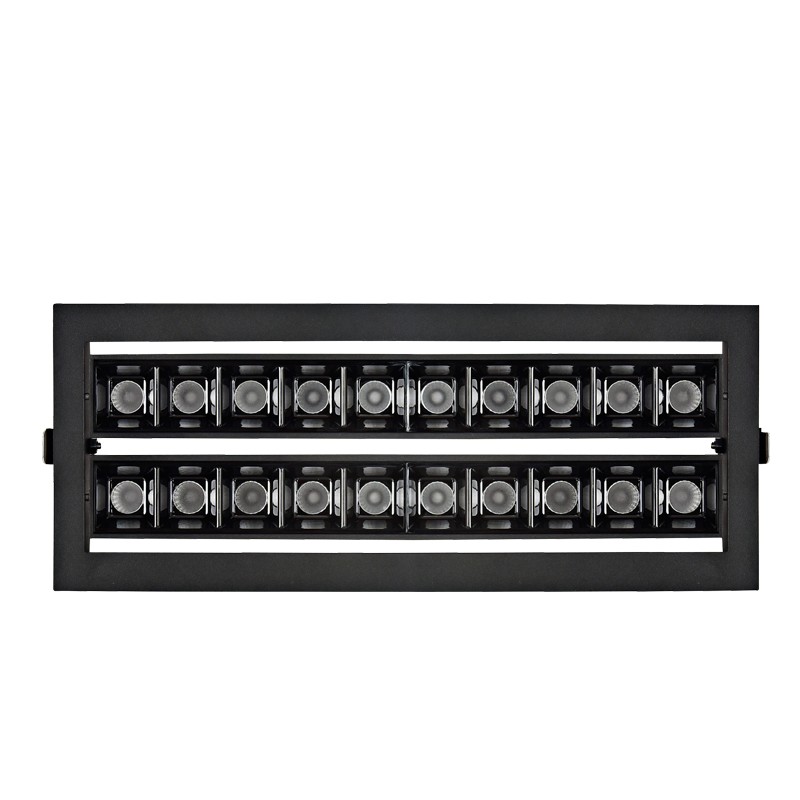

LED Linear Light CVNS00022(图2)

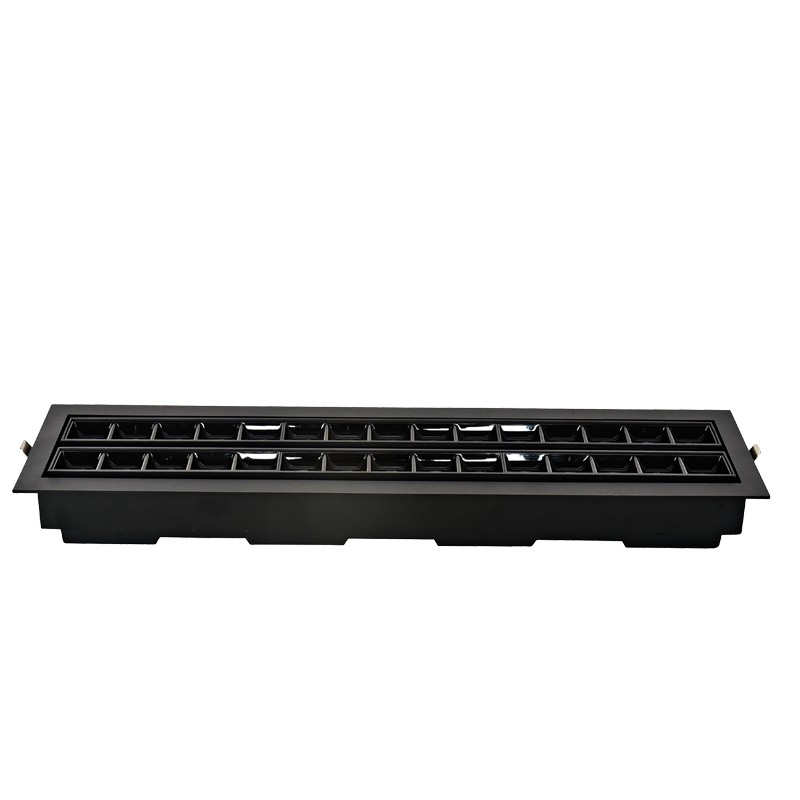

LED Linear Light CVNS00022(图3)

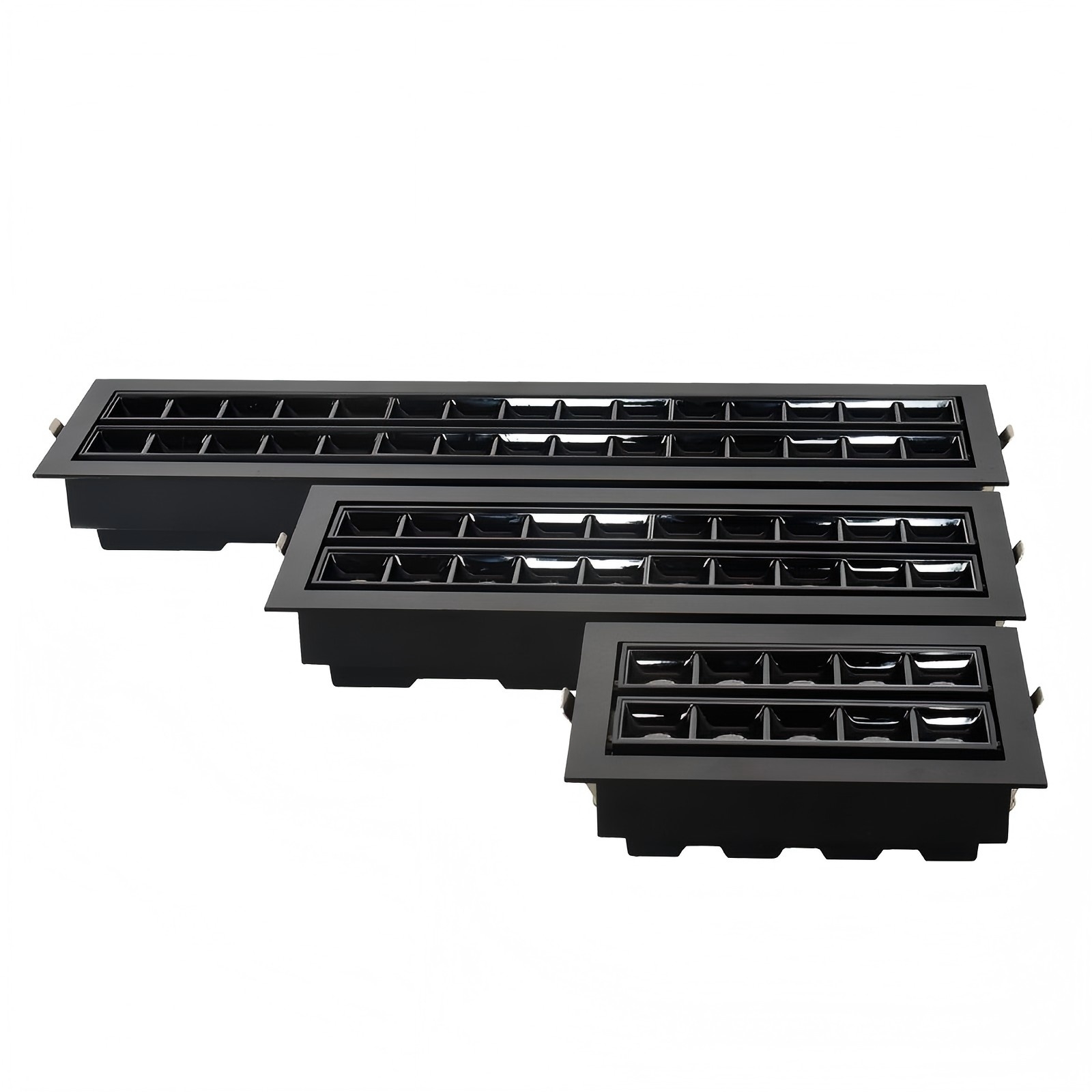

LED Linear Light CVNS00022(图4)

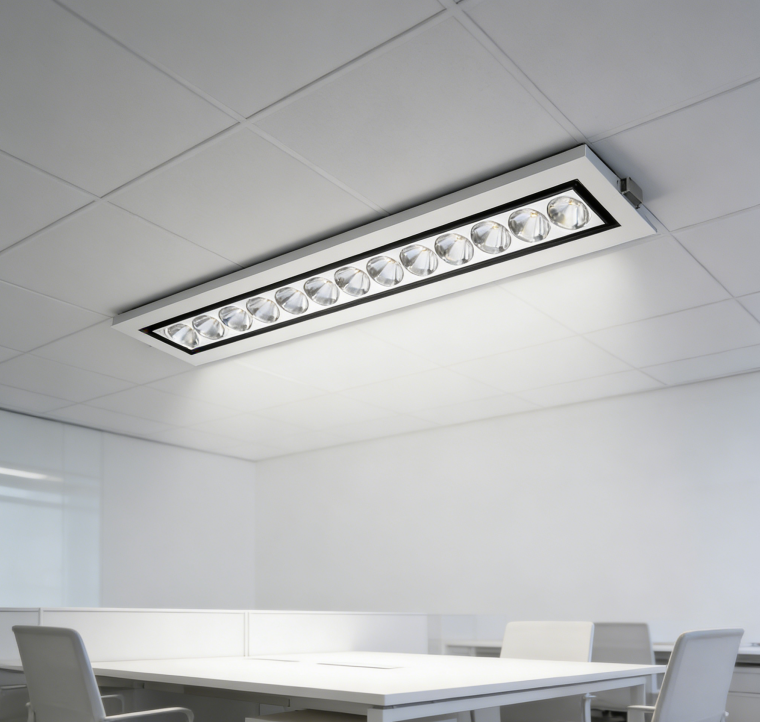

LED Linear Light CVNS00022(图5)

Model	Power	CRI	CCT	PF	Input Voltage	Beam Angle	Dimension	Cutout	IP
CVNS00022	6W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	105*60mm	98*50mm	20
CVNS00022	10W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	158*62mm	152*50mm	20
CVNS00022	12W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	186*60mm	180*50mm	20
CVNS00022	20W－A	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	291*60mm	280*50mm	20
CVNS00022	20W－B	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	168*122mm	155*100mm	20
CVNS00022	30W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	426*62mm	420*50mm	20
CVNS00022	40W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	301*122mm	285*100mm	20
CVNS00022	60W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	434*122mm	420*100mm	20
