LED Linear Light CVNS00022

Model: CVNS00022
Wattage: 6W-60W
LED Chip: CREE/Citizen
Driver Brand: OSRAM/BOKE/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/30°/45°
Diameter: 105*60mm-434*122mm
Cutout: 98*50mm-420*100mm

Inquiry

Details

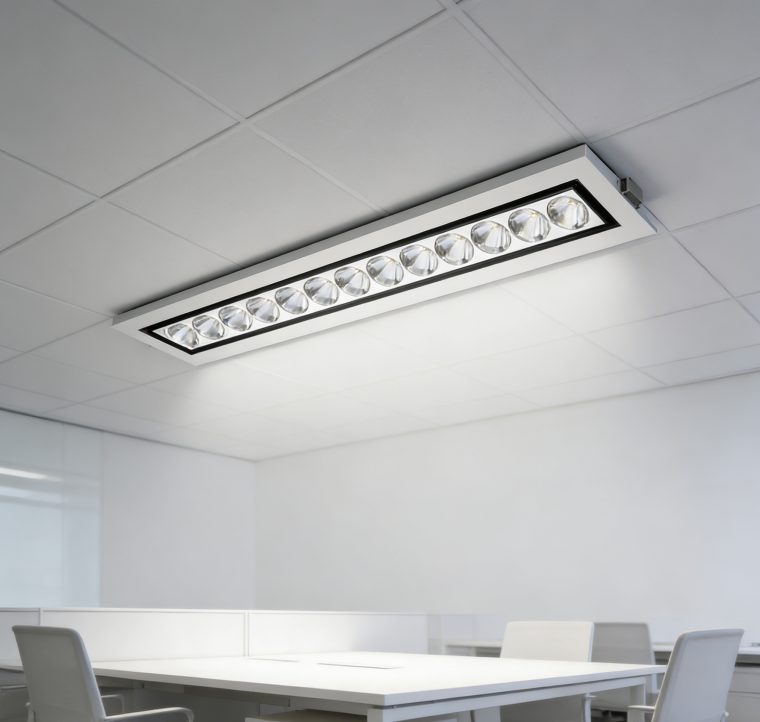

Product Pictures:

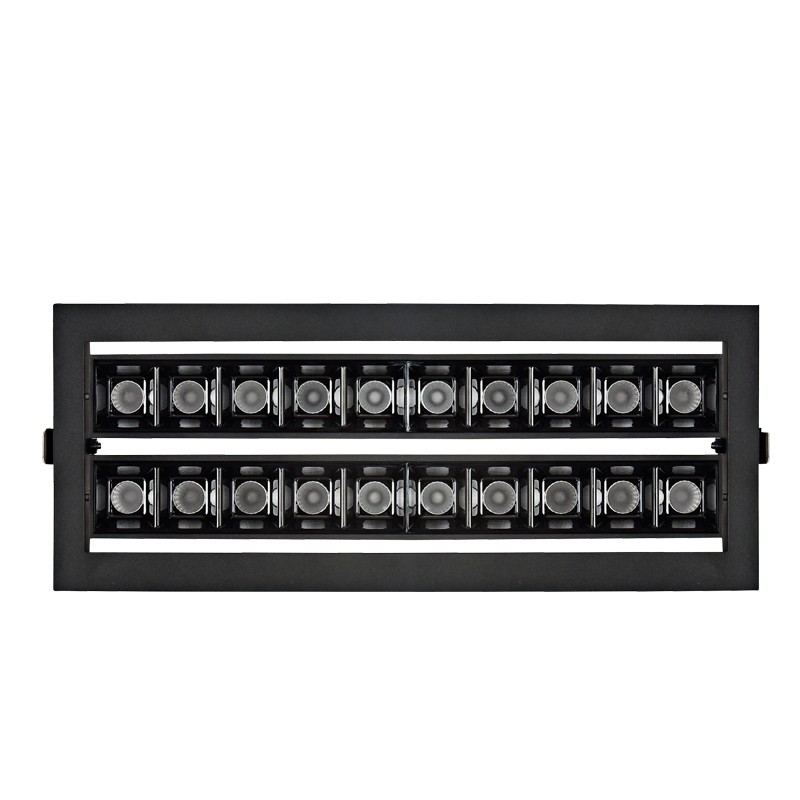

LED Linear Light CVNS00022(图1)

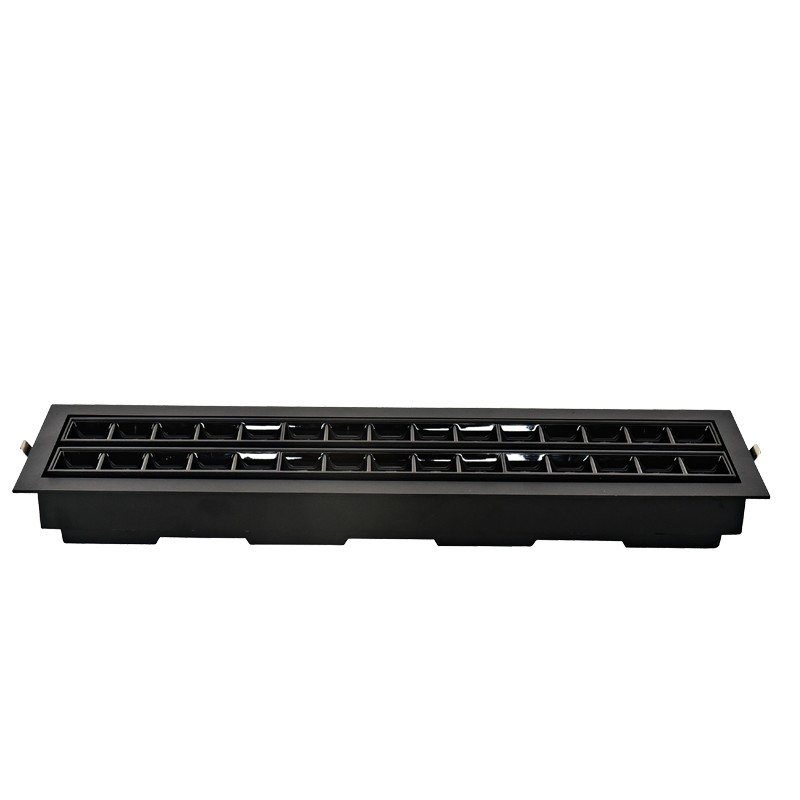

LED Linear Light CVNS00022(图2)

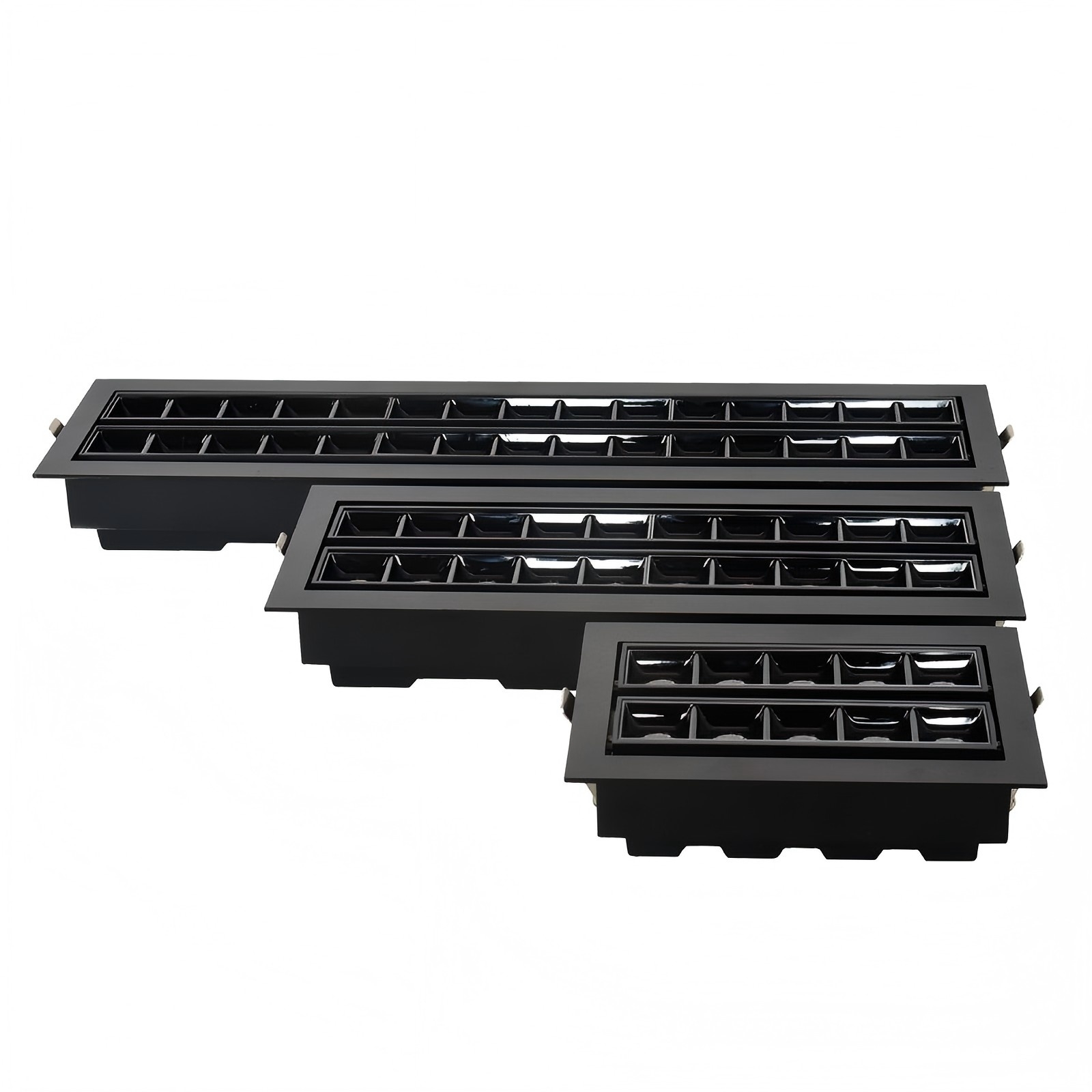

LED Linear Light CVNS00022(图3)

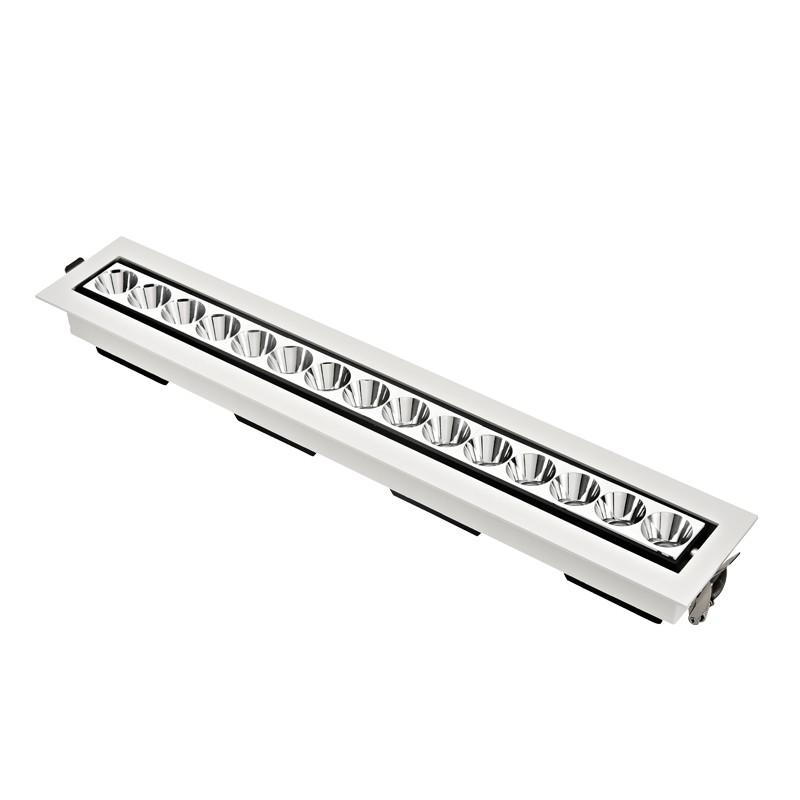

LED Linear Light CVNS00022(图4)

Model	Power	CRI	CCT	PF	Input Voltage	Beam Angle	Dimension	Cutout	IP
CVNS00022	6W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	105*60mm	98*50mm	20
CVNS00022	10W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	158*62mm	152*50mm	20
CVNS00022	12W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	186*60mm	180*50mm	20
CVNS00022	20W－A	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	291*60mm	280*50mm	20
CVNS00022	20W－B	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	168*122mm	155*100mm	20
CVNS00022	30W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	426*62mm	420*50mm	20
CVNS00022	40W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	301*122mm	285*100mm	20
CVNS00022	60W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	434*122mm	420*100mm	20
